6000W Automatic Laser Welding Machine with 3 Years Warranty for Battery Pack Welding

Brand Name:	CHEEO
MOQ:	1
цена:	$10,000-11,000

Detail Information

Product Description

Detail Information

Место происхождения:

Гуандун, Китай

выходная мощность:

6000 Вт

Лазерная длина волны:

1080

Скорость сварки:

10-100 мм/с

Точность позиции:

± 0,05 мм

Точность перемещения:

± 0,01 мм

Быстрая скорость позиционирования:

1000 мм/сек (xyaxis), 500 мм/сек (Zaxis)

Качество луча:

<1.4㎡

Устойчивость к мощности:

≦ 3%

Лазерное фокусное фокусное расстояние:

F=180 мм

Максимальный подвергая механической обработке размер:

800*600 мм/1000*800

Температура окружающей среды:

5-45 ℃

Общий расход энергии:

10 кВт (6000 Вт)

Общее измерение:

L1343XW1454XH22235MM

Вес машины:

500 кг

Система охлаждения:

Внешнее водяное охлаждение

Выделить:

6000W Laser Welding Machine

Automatic Battery Pack Welding Machine

3 Years Warranty Fiber Laser Welder

Product Description

Manufacturer Factory Price Laser Welder Fiber Welding Automatic Machine

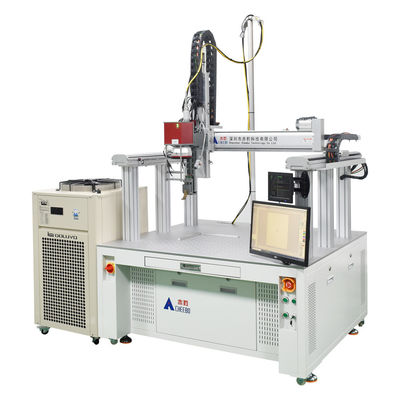

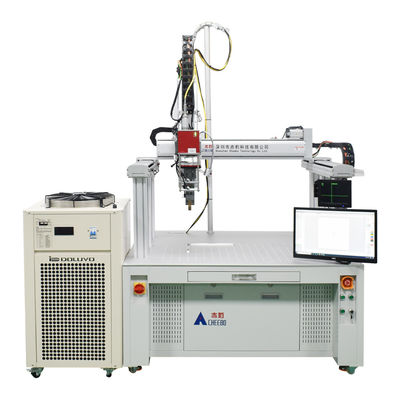

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers efficient, safe, and stable performance, particularly for lithium battery welding applications.

Key Features:

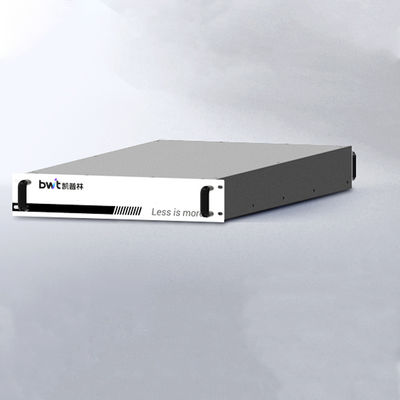

Advanced fiber laser source specifically designed for high reflective materials (aluminum)
Gantry machine tool with excellent rigidity and stability
High beam quality, reliability, and low operating costs
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption
Optional CCD visual positioning and automatic focal length measurement

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Laser Power Adjustment Range	1-100
Laser Focusing Focal Length	F=180mm	CCD Positioning Accuracy	0.01mm (Optional)
Maximum Machining Size	800600mm/1000800	Ambient Temperature	5-45℃
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall Dimension	L1343xW1454xH22235mm	Machine Weight	About 500KG

Product Details

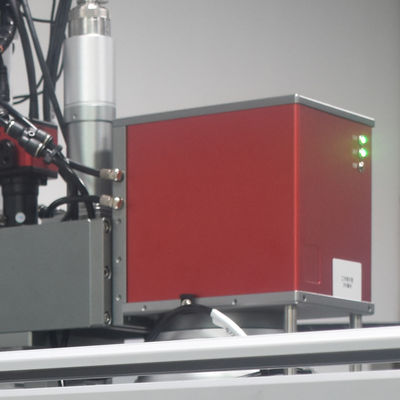

Welding Point Monitoring, Autofocus

High Precision Welding Joint of Vibrating Mirror

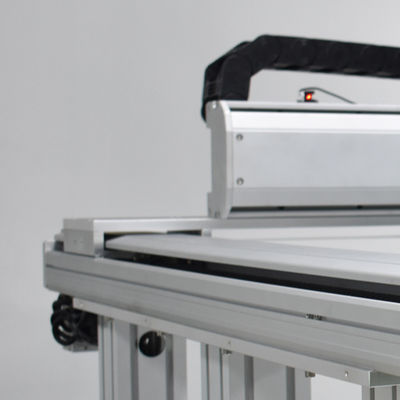

Rail Module

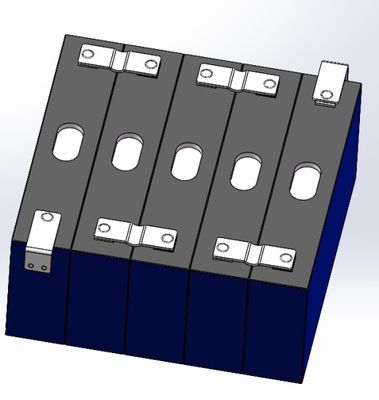

Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the best solution.

Q: How to install and operate the machine?

A: Our technicians pre-install the machine before shipping. We include detailed training videos and manuals for minor components. 95% of customers can self-learn operation.

Q: What is your minimum order quantity?

A: No minimum order quantity. We fully support orders of any size.

Q: How is quality control handled?

A: Each unit undergoes 20+ tests. Our QC team verifies welding performance after all tests are passed.

Q: What if there's a problem with the machine?

A: Contact us immediately. Do not attempt repairs. We respond within 24 hours to resolve any issues.
